Earth Trails

The first Idea was to reduce the speed of a motor with multiple gears or a big wheel and a belt, but I soon realized that the easiest and most effective way to reduce the speed was to use a worm drive arrangement.

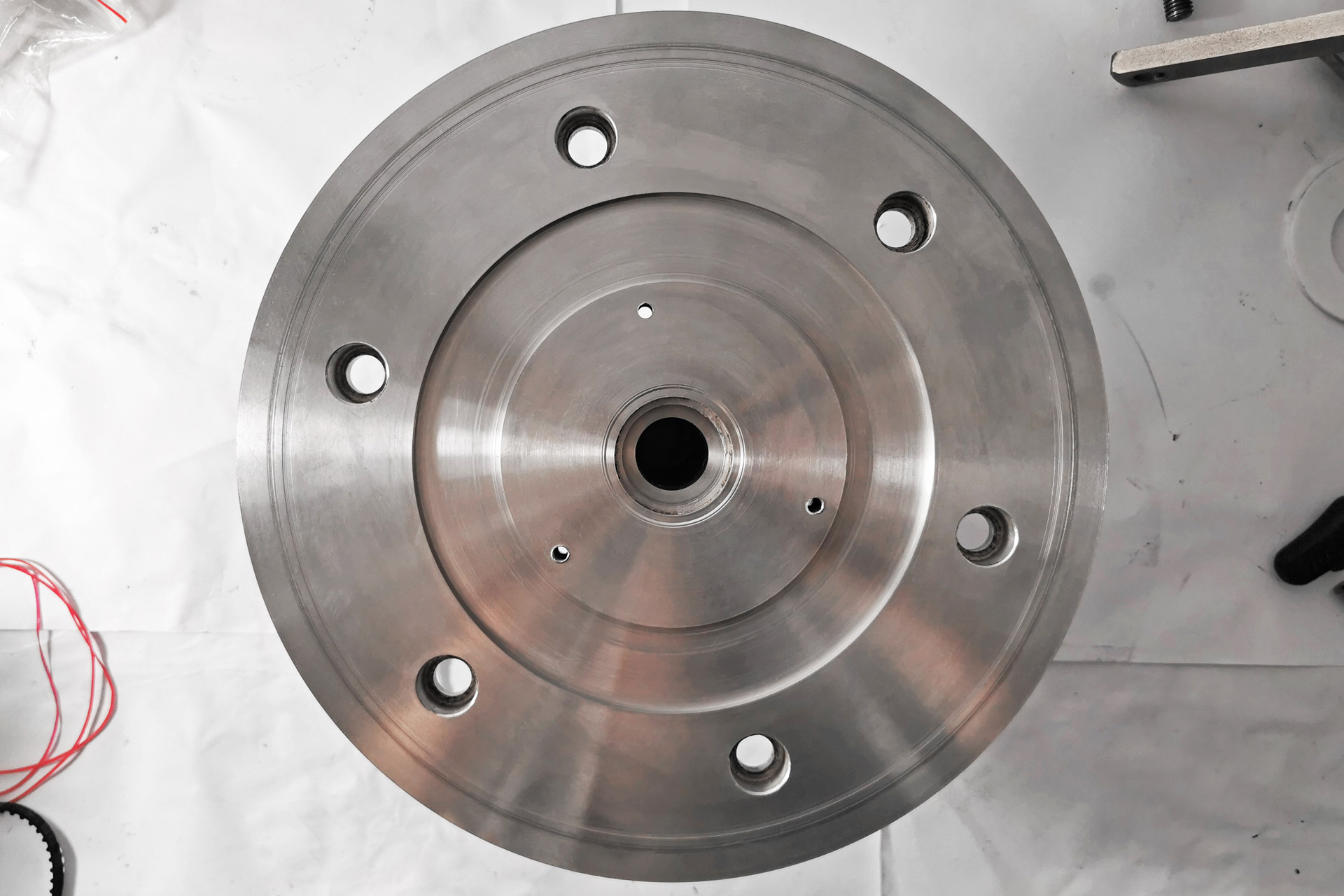

I used a metal lathe and a milling machine to create a wheel and its bearing.

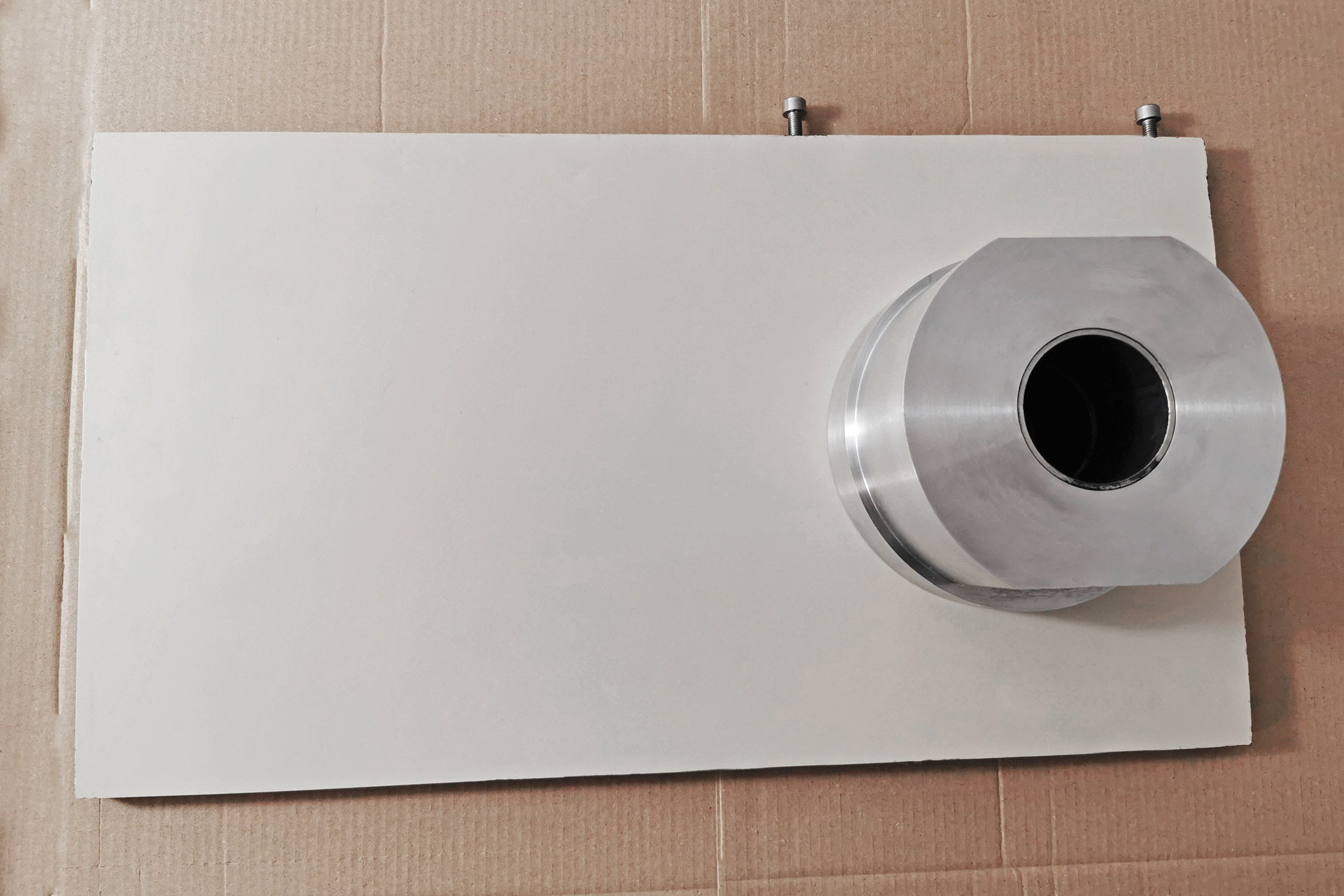

I screwed it on a plate that I cut out of an old table.

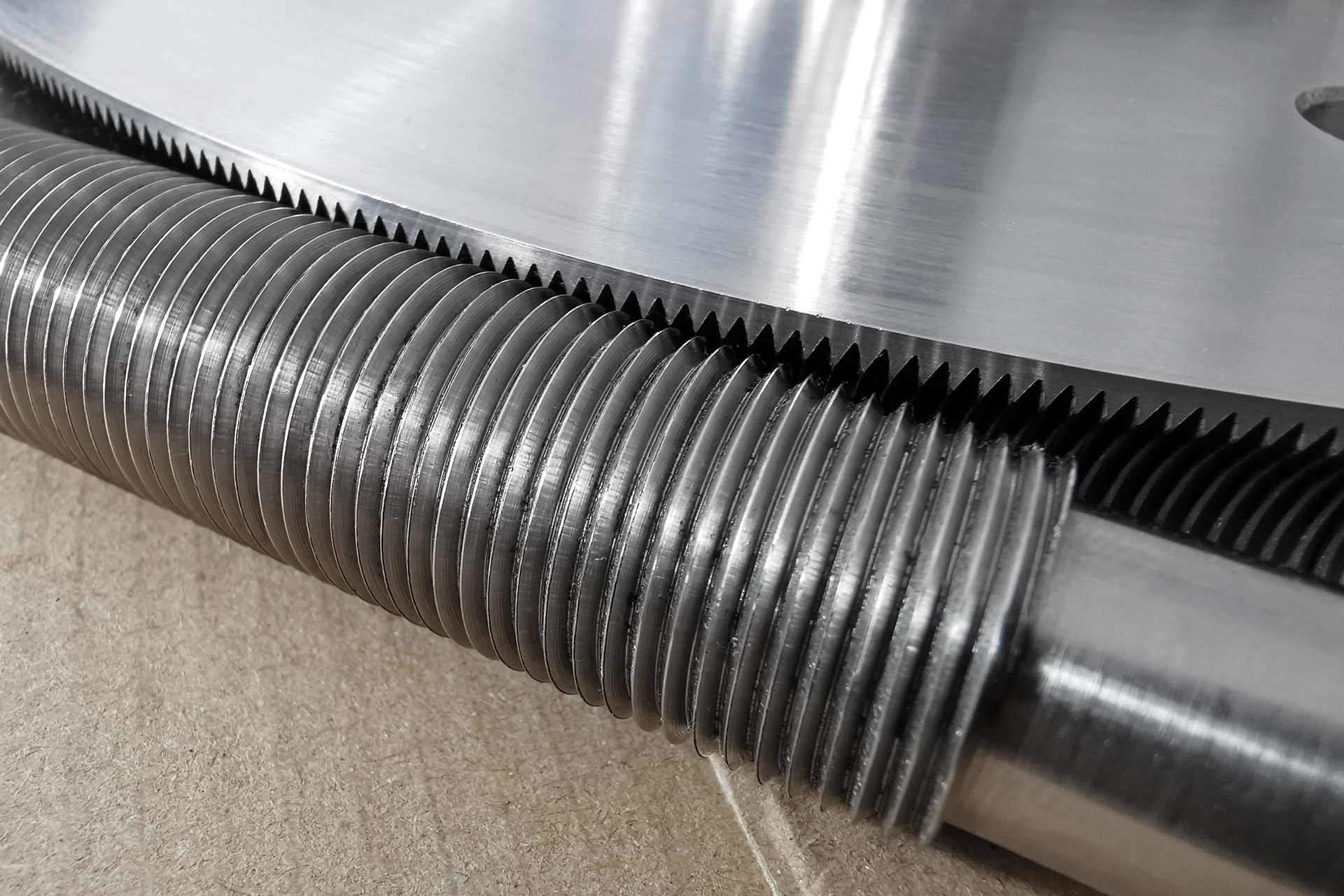

With a tap and die and the lathe machine I made the worm screw and threaded the wheel.

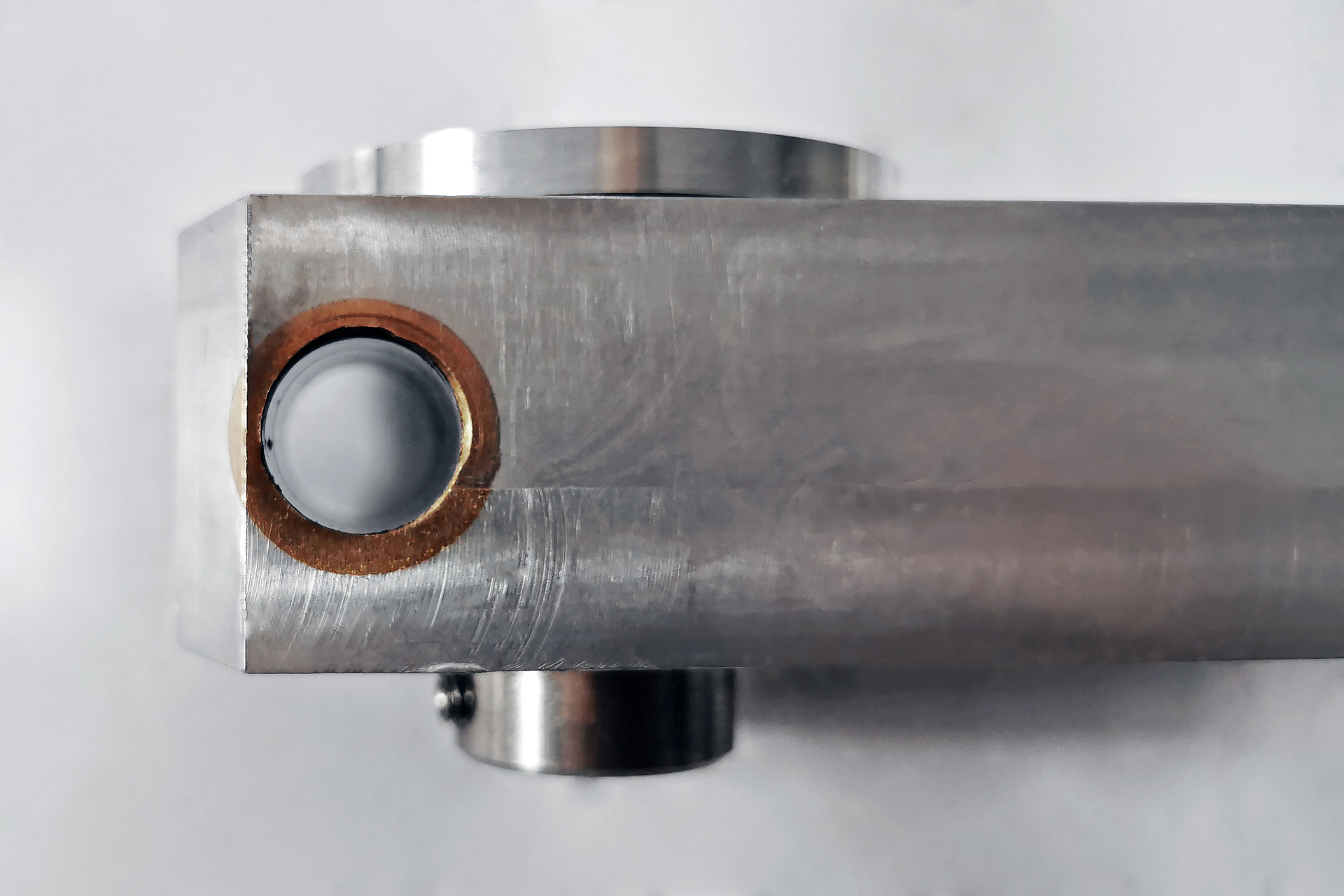

For the worm screw I used a self-lubricating sintered bearing on a tiltable aluminium part.

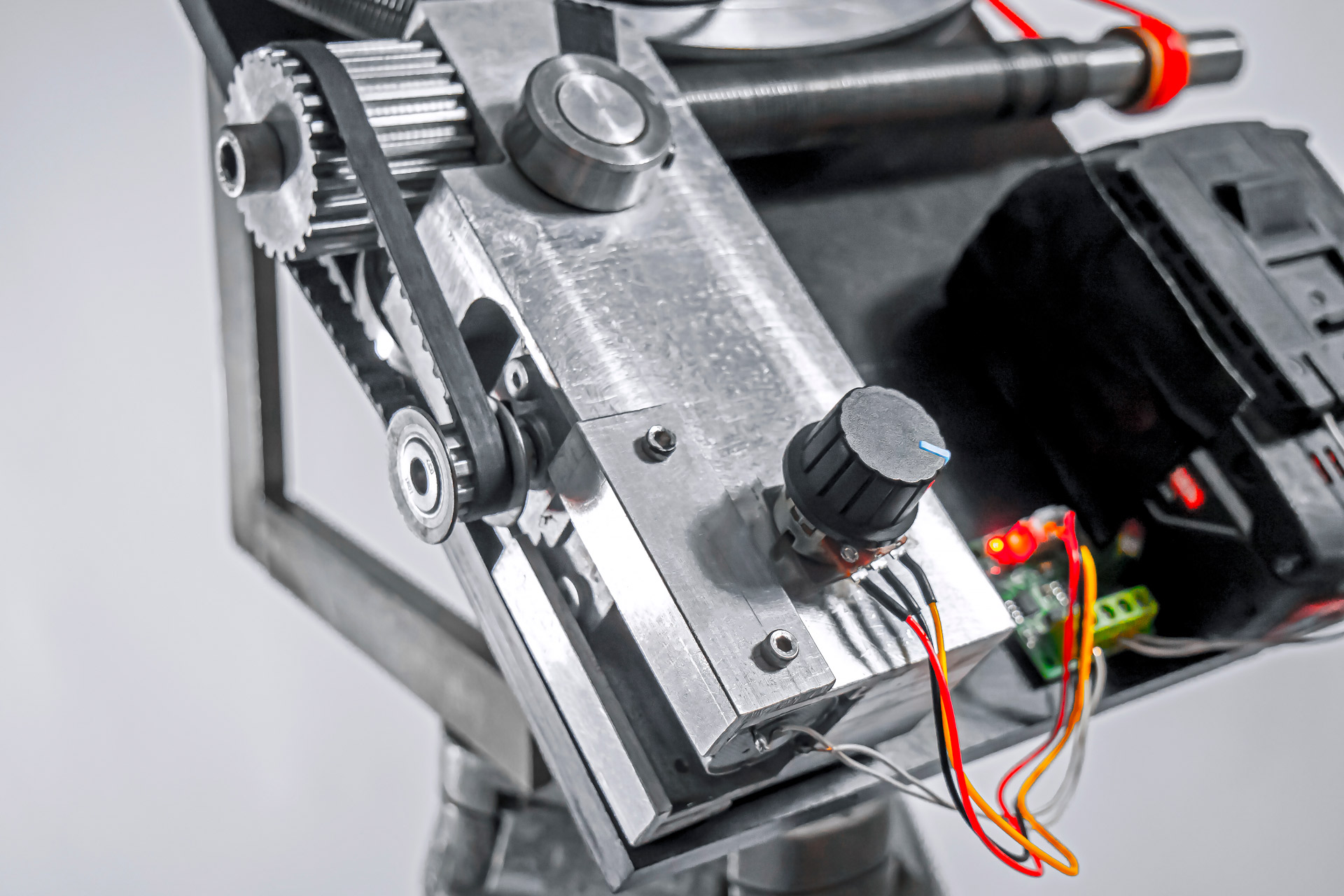

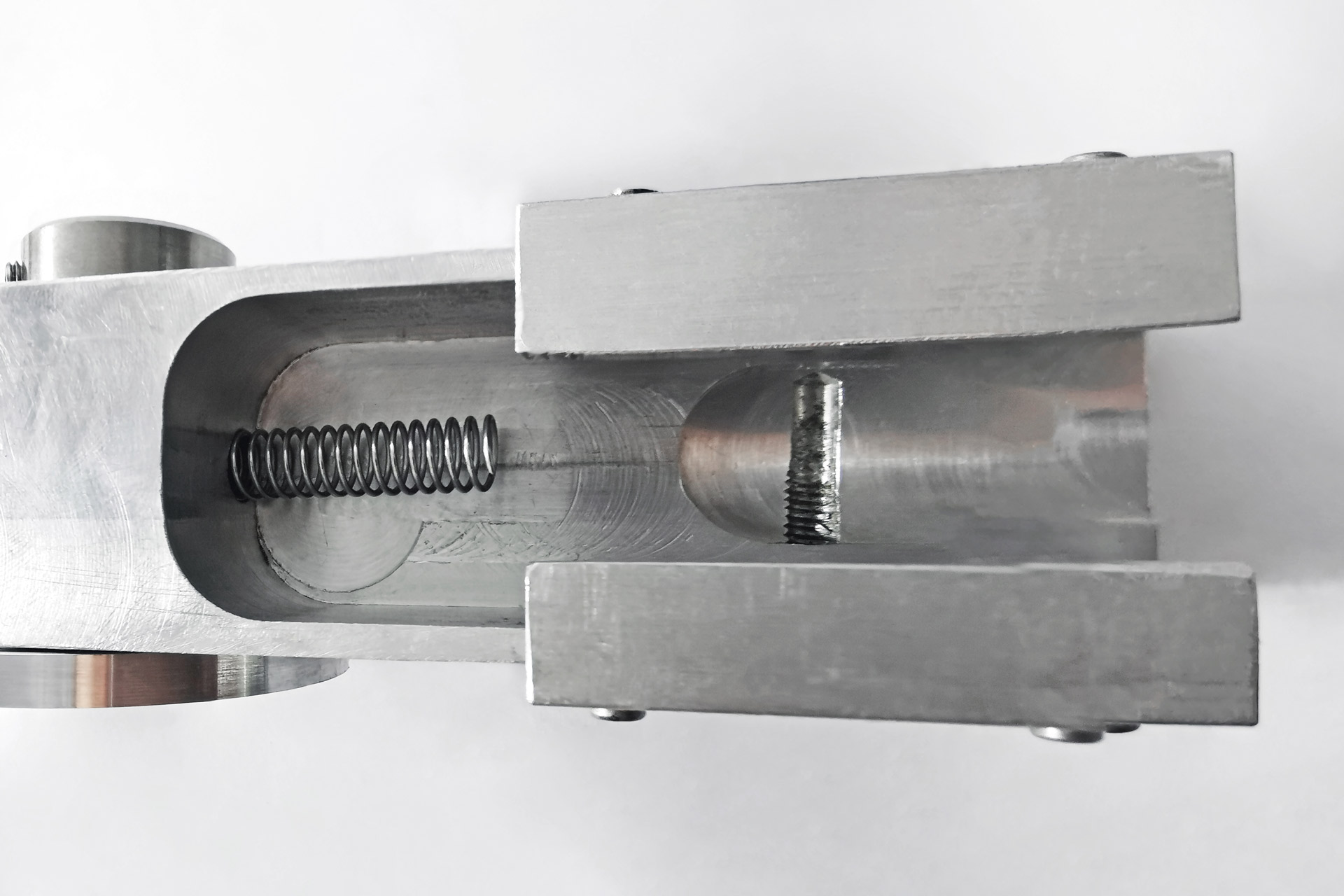

For the motor I cut out a space in the metal part and used a spring to put tension on the belt.

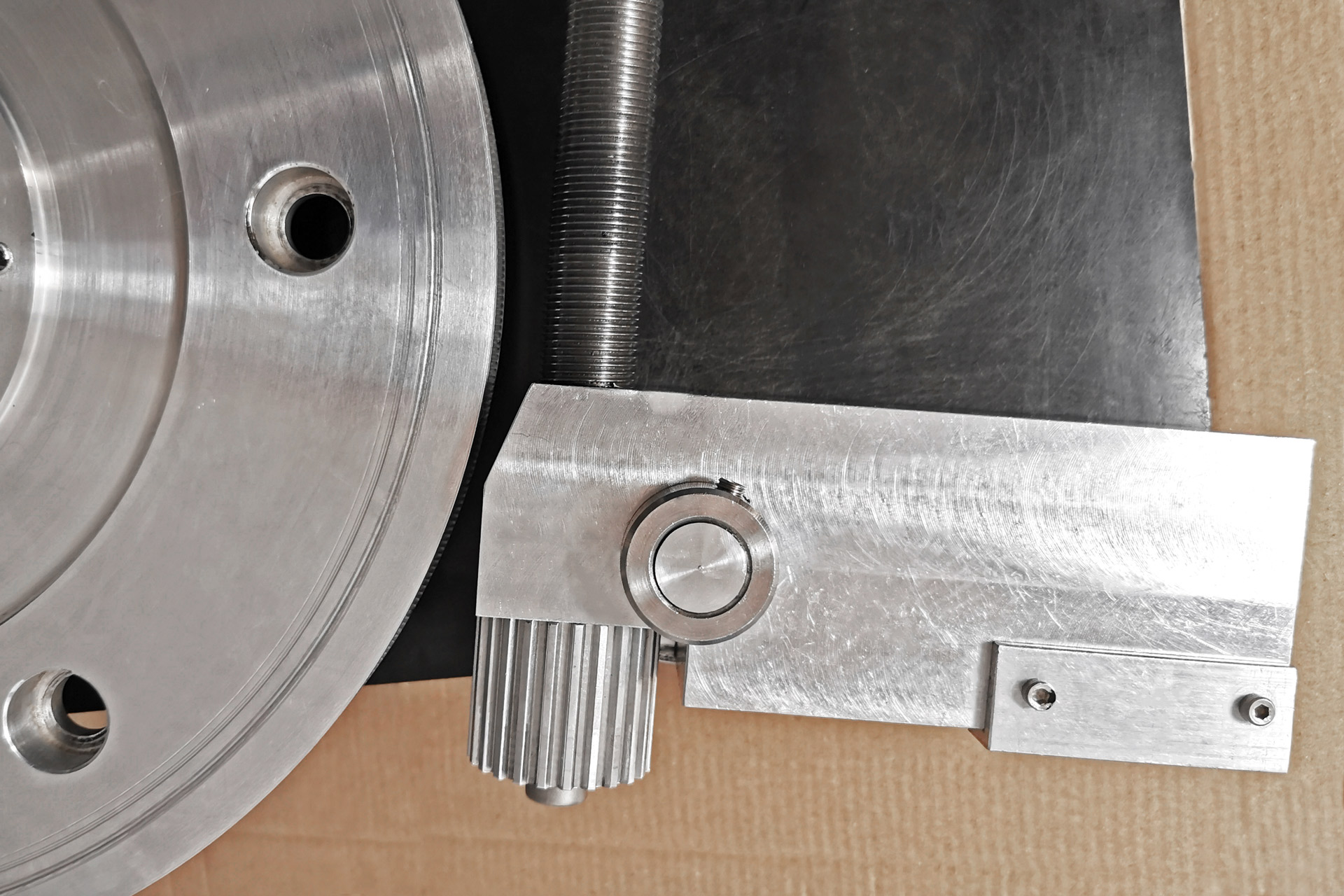

I put a gear on the end of the worm screw rod and attached the part to the plate. The rod is later pushed against the worm wheel with a rubber band.

The motor is pushed into its case and connected to the worm wheel rod with a toothed belt. A 18V battery is connected to a the motor with a voltage regulator in between.

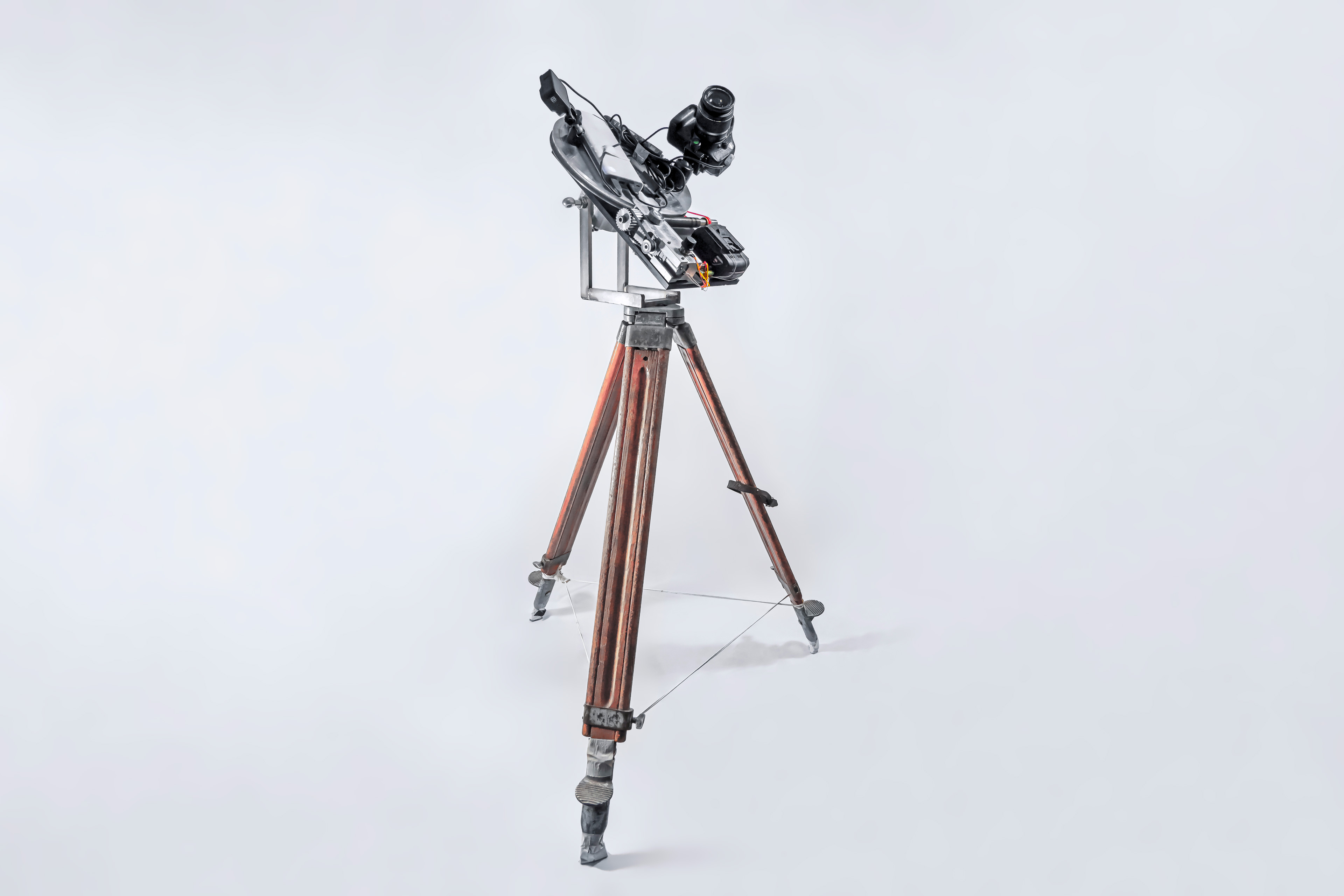

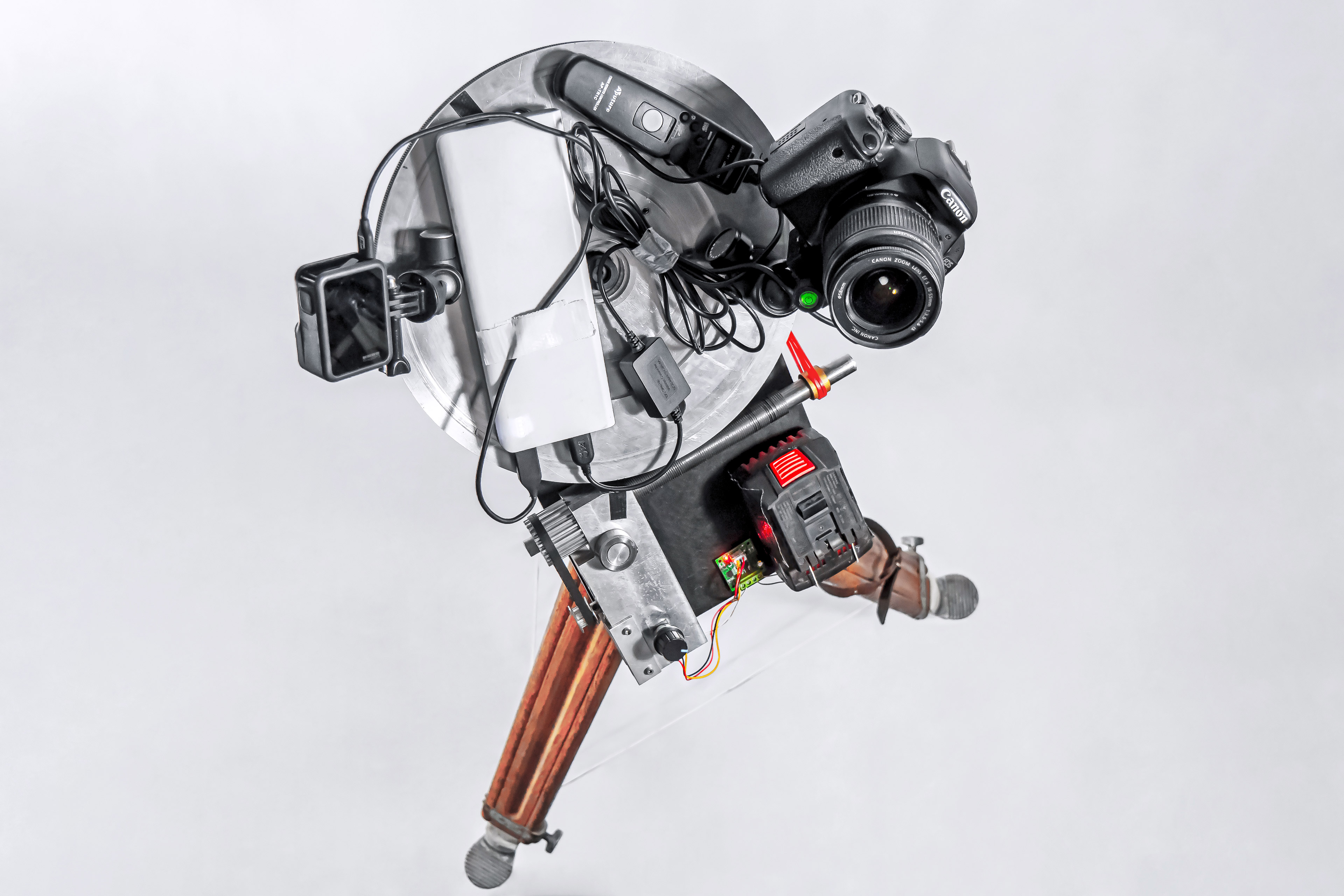

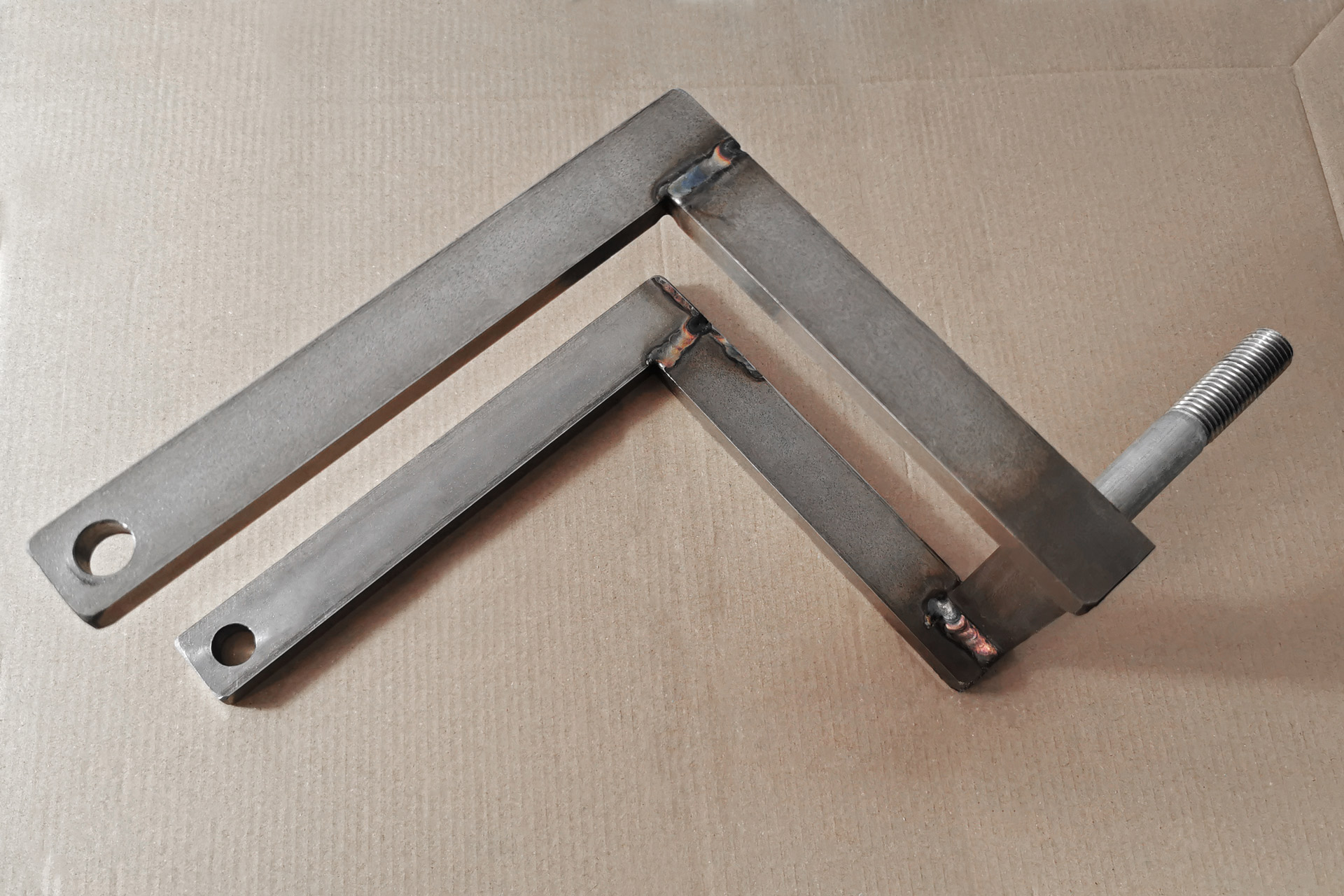

I welded together a tripod head, to rotate and tilt the device and put it on a wooden tripod.

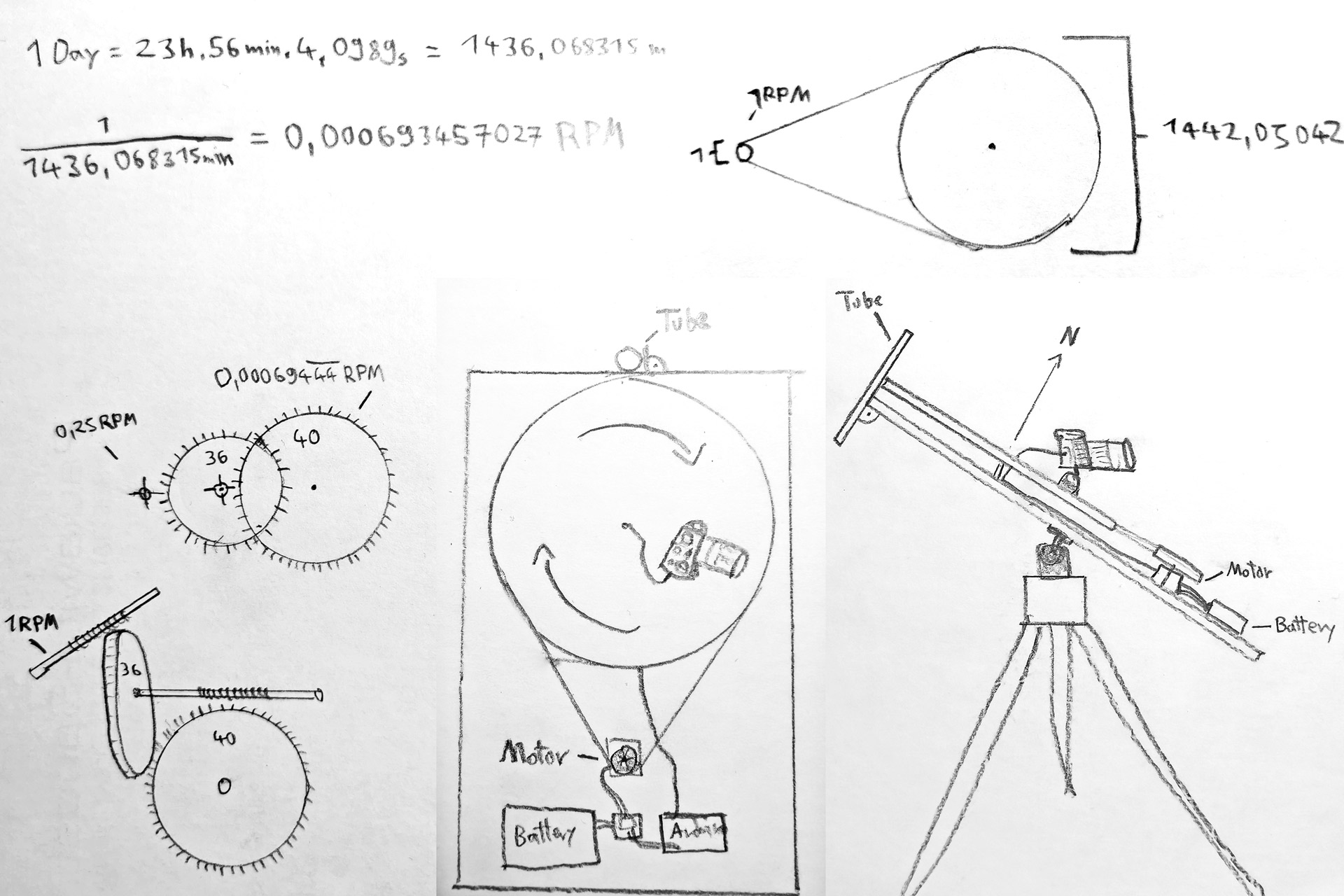

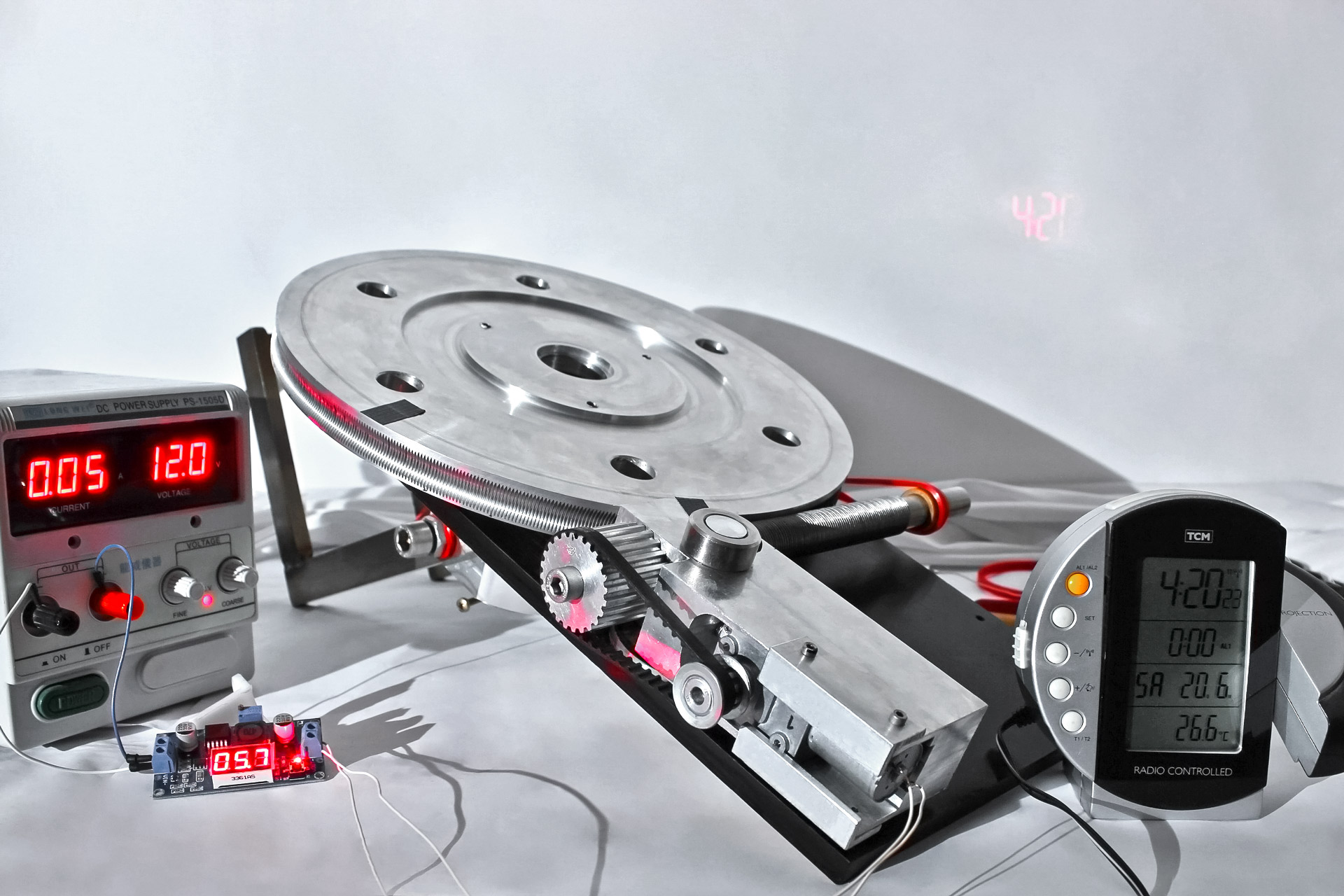

To figure out the needed voltage I counted the 622 teeth on the worm wheel and calculated how many rotations of the worm screw are needed. Then I recorded the rotation over one day and adjusted the voltage.

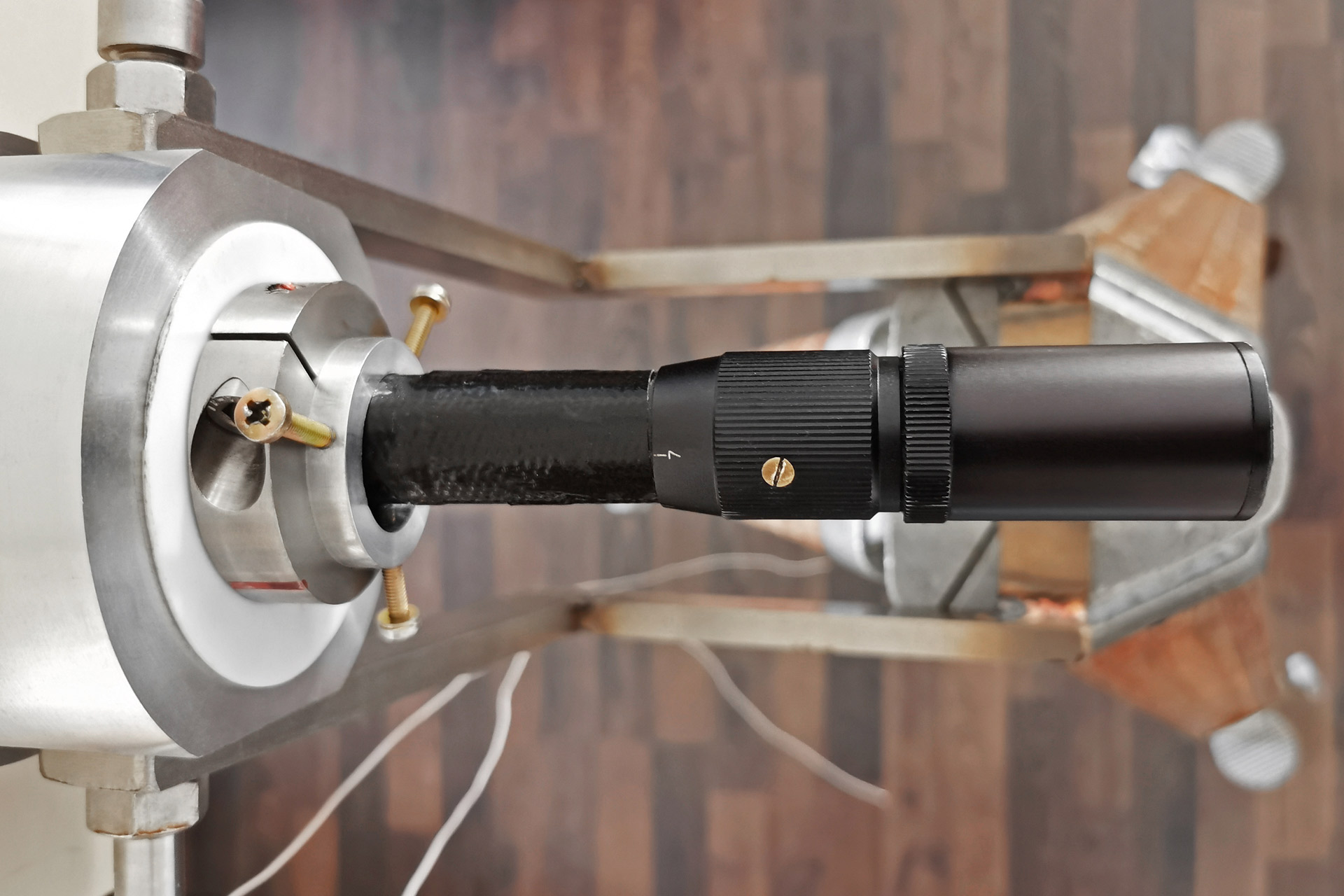

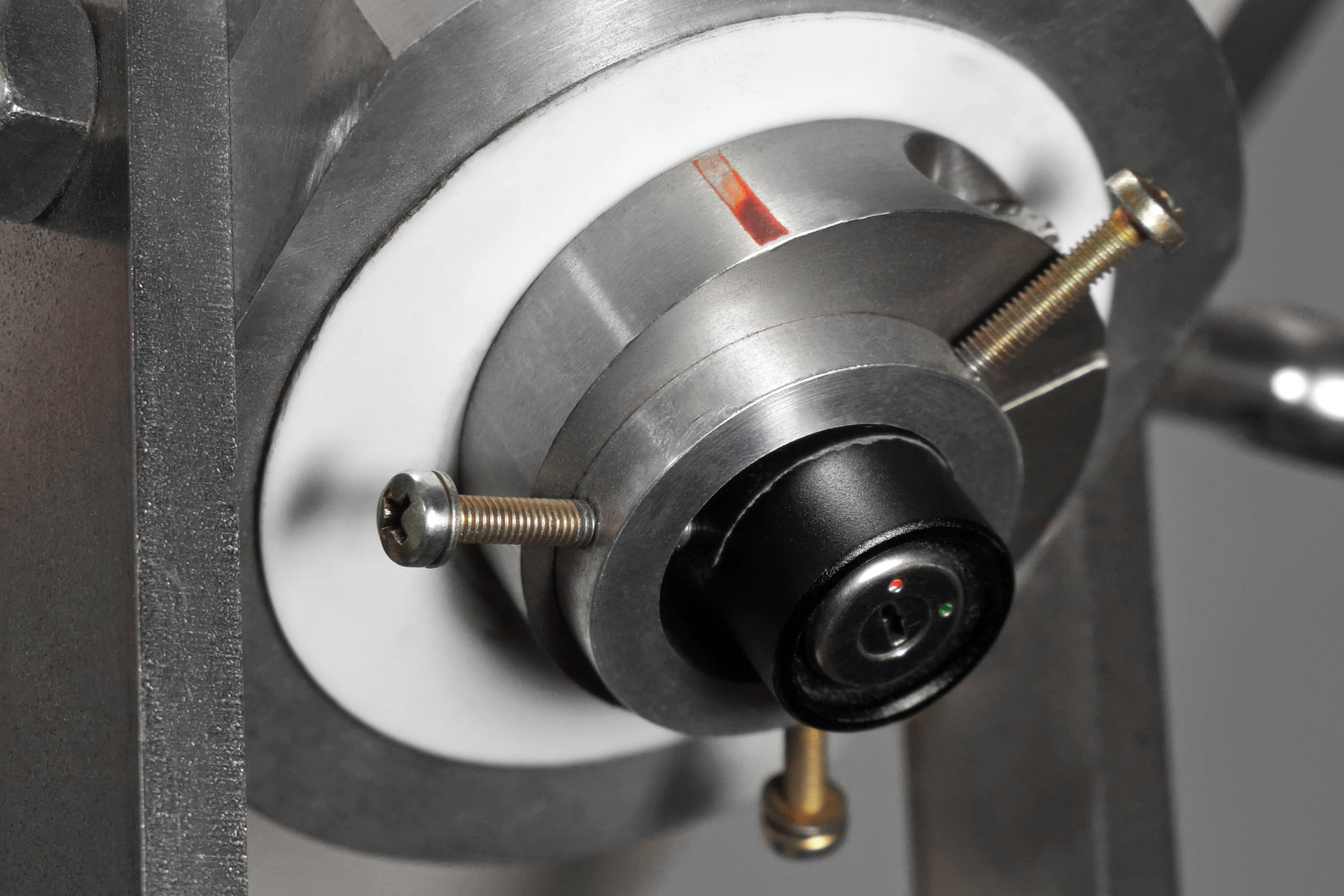

To find the North Star, at first I used a telescopic sight that I put in the middle of the wheel’s axis. I fixated and adjusted it with three screws.

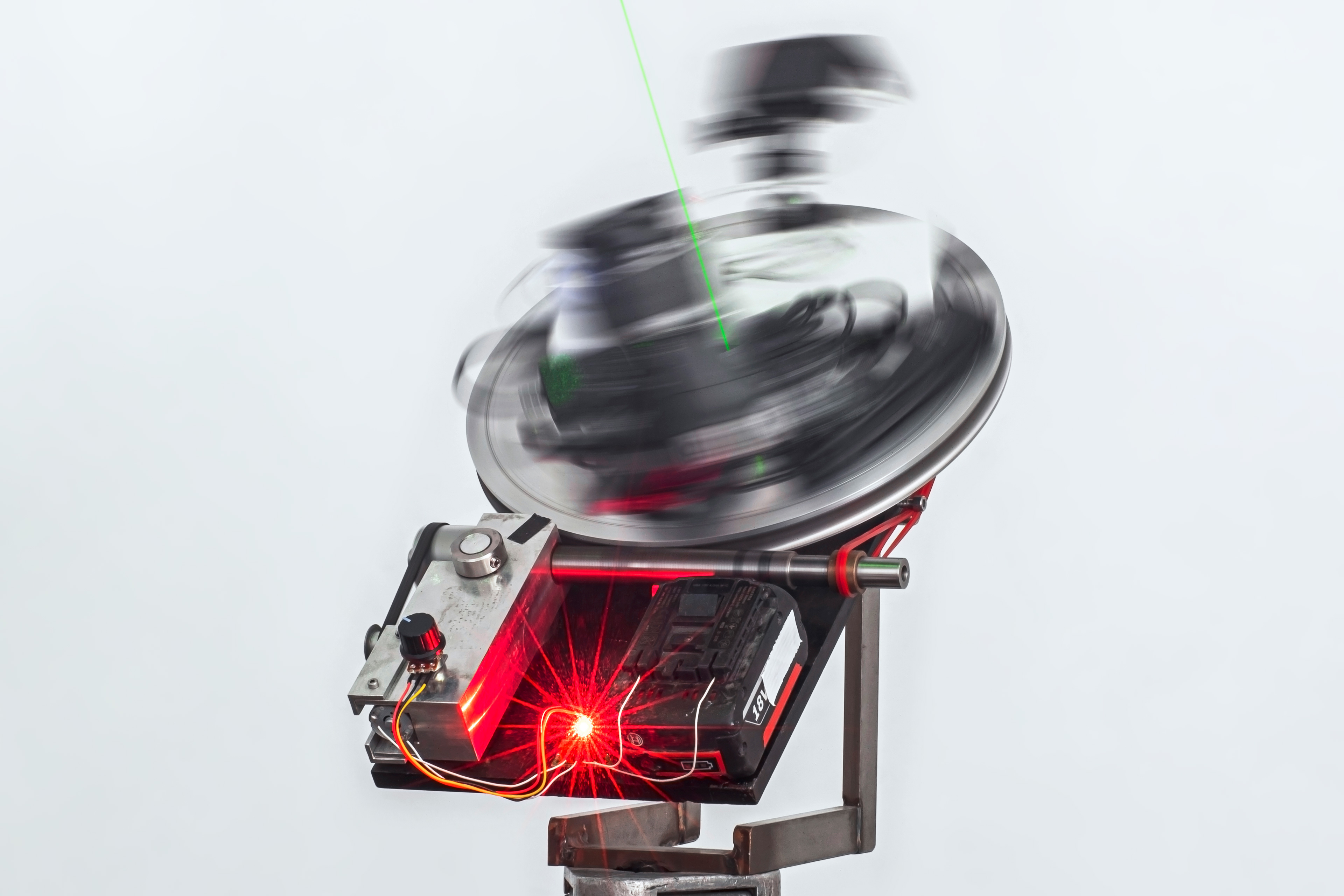

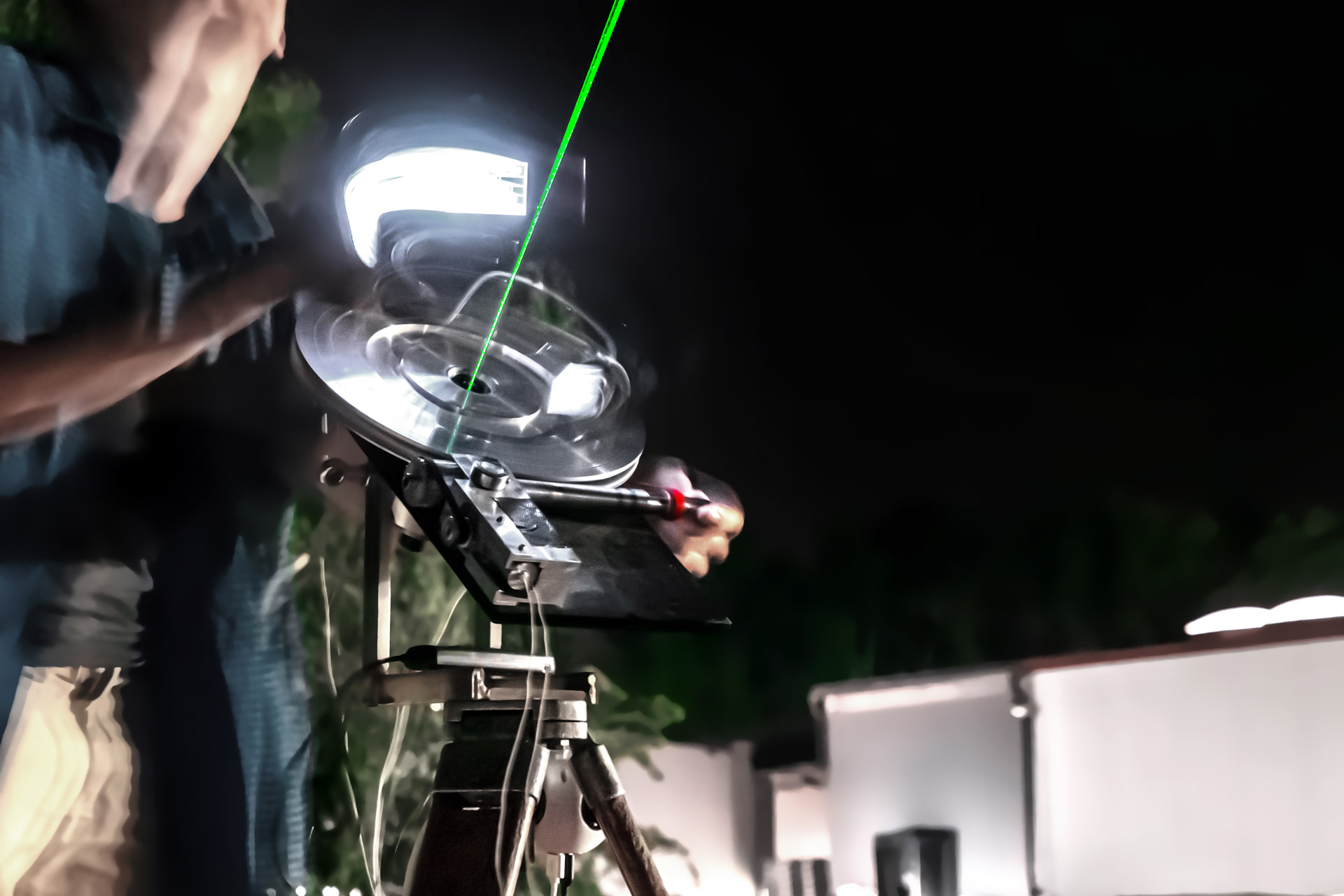

I later switched it out with a green laser. The eye is particularly sensitive to the green color and the beam can unambiguously point to the North Star and be seen up to 2 km high reflecting of particles and water vapor in the peplosphere.

To get the rotation speed as accurate as possible I later also used a telephoto lens, made long exposure photos and fine-tuned the motor speed until the stars left no more trails.

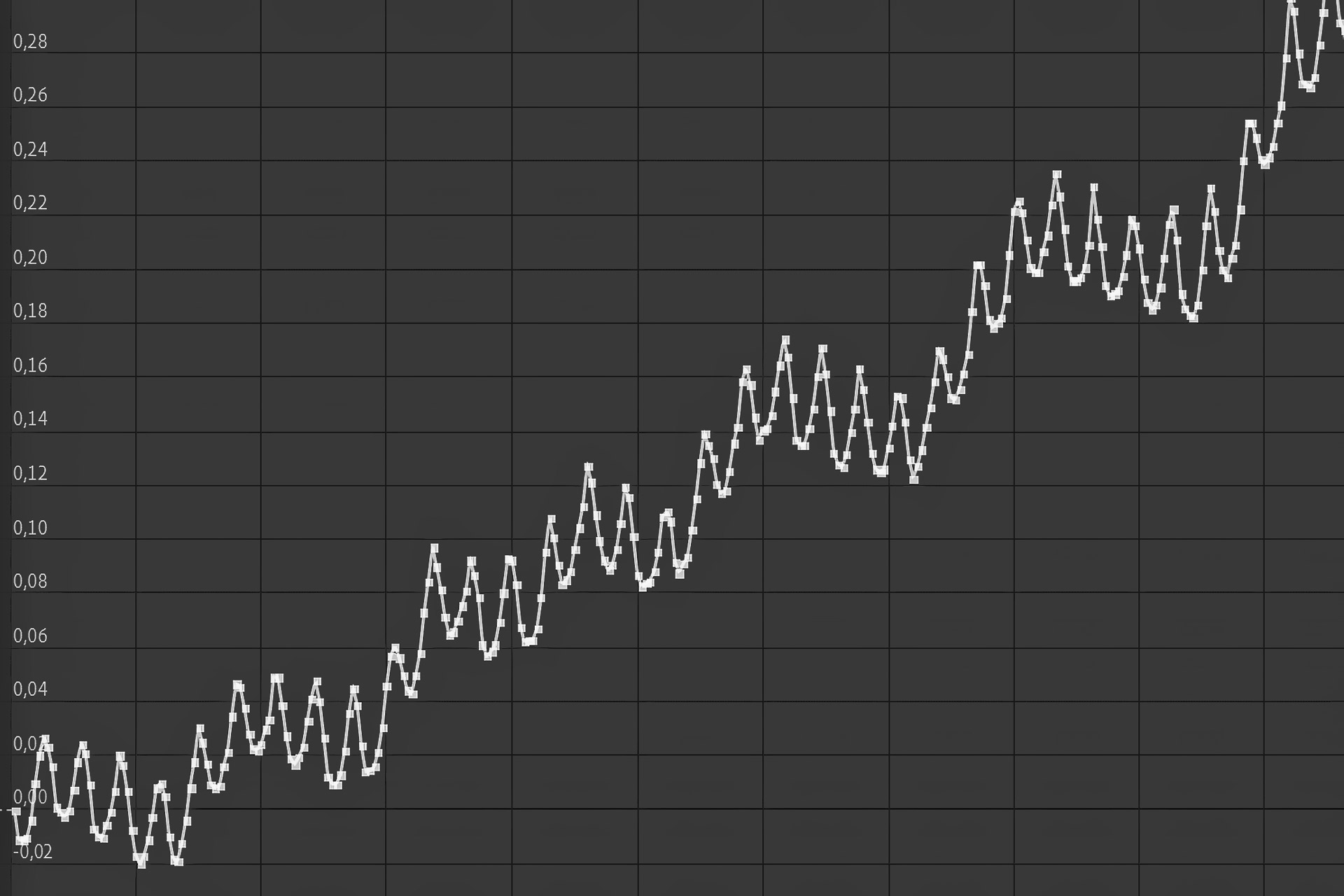

In the Videos I saw an approximately 2.5 minute oscillation in motor speed which I got rid of by tracking the stars in After Effects and stabilizing the video.

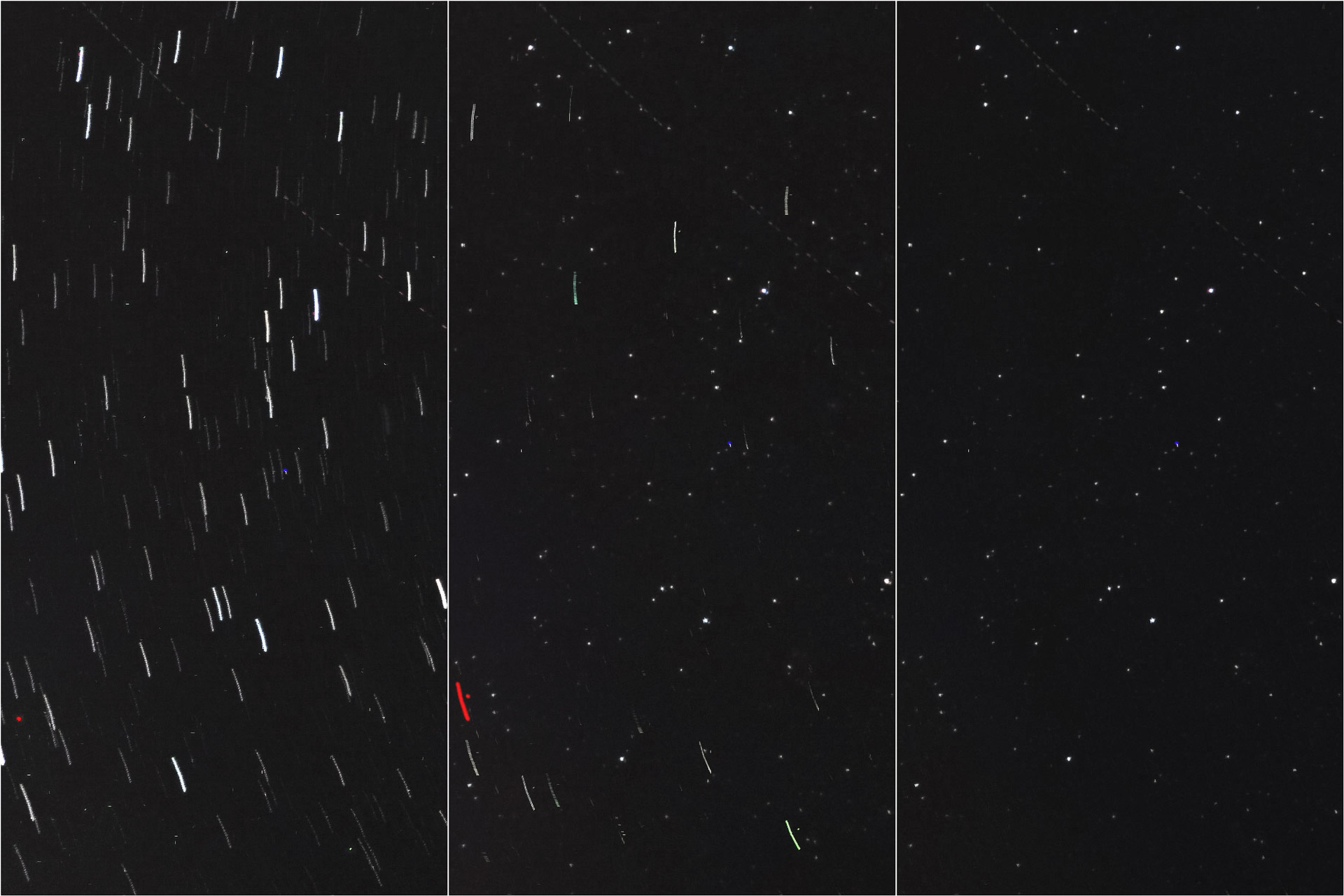

Because of this digital image stabilization otherwise static hot pixels began to move and show up on layered photos. Since hot pixels look very similar to stars I couldn’t remove them with usual noise reduction without also removing the stars. So I recorded long exposure shots in complete darkness and combined the photos to one with just the hot pixels. With this map I created a Photoshop action that removes all hot pixels of my camera in a batch process.

I tried different approaches to better visualize the movement of our planet with the material I collected. One was the time-lapse video that simply speeds it up to make it perceivable. Another was to add digital motion blur in After Effects to make a smoother fast moving Video.

I also wanted to produce some still images that showed the rotation during the night. One way was to use the “Lighten” blending mode in Photoshop which just keeps the brightest pixels of all the photos. That way planes, satellites and shooting stars are also visible. The downside is that It only works at night and had there been any bright irregularity, it will be visible in the final image. I also created a Photoshop action to make a video out of this process.

Another option in Photoshop was to use the image statistics script. Here I could let Photoshop calculate the average value for each pixel. That way irregularities don’t show up and most of the noise is gone, too.
